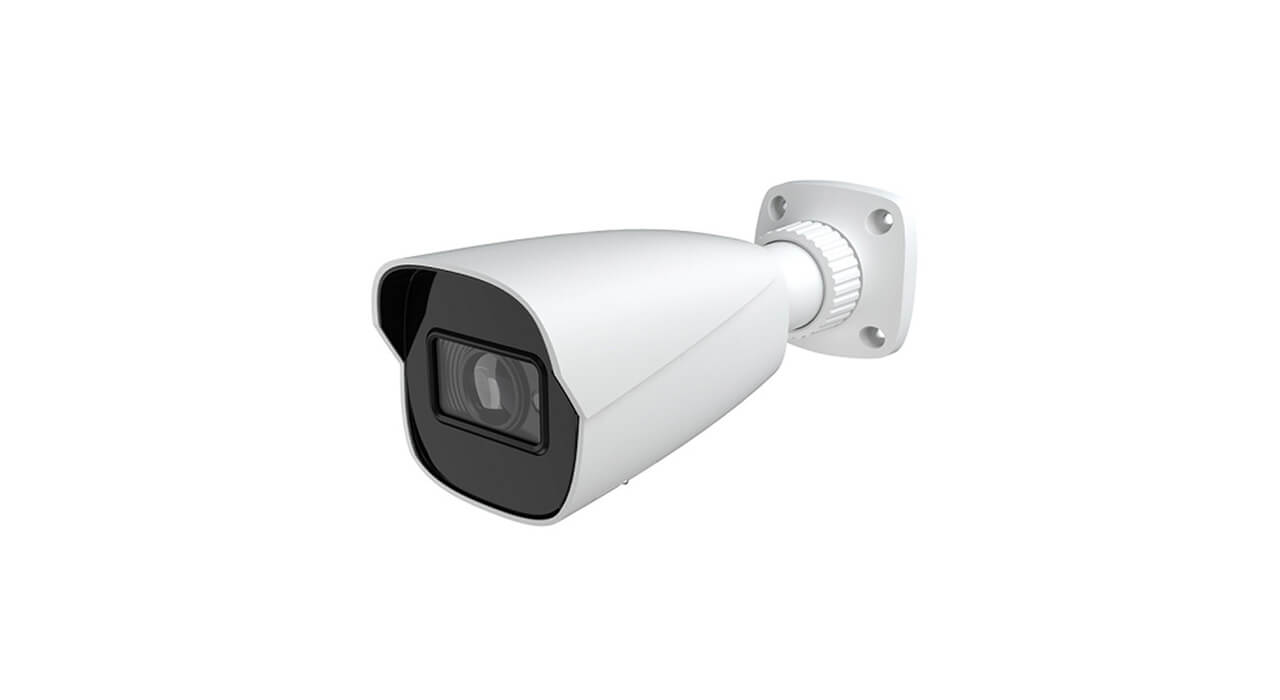

دوربین مداربسته تحت شبکه سیماران مدل SM-IP8416M-WZ

مشخصات فنی

• رنگ
  سفید
• وزن
  Approx. 0.66KG
• ابعاد
  217.7 × 80.5 × 80.5
• کشور سازنده
  ایران
• مدت زمان گارانتی
  24 ماه
• Image sensor
  1 / 2.7 "CMOS
• Image size
  3840 × 2160
• Electronic Shutter
  1 / 25 s ~ 1 / 100000 s
• Iris Type
  Fixed Iris
• Min. Illumination
  0.11 lux @F2.2, AGC ON; 0 lux with IR
  0.032 lux @ F1.2, AGC ON; 0 lux with IR
• Lens
  2.8 mm @F2.0, (fixed lens) , horizontal field of view: 112°
  3.6 mm @F2.2, (fixed lens) , horizontal field of view: 89°
  2.8~12mm@F1.4, (motorized zoom lens) , horizontal field of view: 102.7°~32.2°
• Lens Mount
  M12 or Φ14 optional
• Wide Dynamic Range
  Digital WDR
• BLC

• HLC

• Defog

• Digital NR
  3D DNR
• Angle Adjustment
  Pan: 0 ~360 ; Tilt: ° ° 0°~90°; Rotation: 0°~360°
• Video Compression
  H.264/ H.265
• Resolution
  8MP ( 3840 × 2160 ),6MP ( 3072 × 2048 ), 5MP ( 2592 × 1944 ),
  720P ( 1280 × 720 ), D1, CIF, 480 × 240
• Main Stream
  8MP/ 6MP/ 5MP(1~20fps)
• Sub Stream
  720P/D1/CIF(1~20fps)
• Bit Rate
  64 Kbps ~ 8 Mbps
• Bit Rate Type
  VBR / CBR
• Image Settings
  ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic,
  Sharpen, NR,etc. adjustable through client software or web browser
• ROI
  Each ROI to be configured separately
• Network
  RJ45
• Video Output

• Audio
  1CH audio input
• Interfaces Storage
  Built-in micro SD card slot; up to 128GB
• Hardware Reset

• Remote Monitoring
  Web browsing, CMS remote control
• Online Connection
  Support simultaneous monitoring for up to 3 users;
  Support multi-stream real time transmission
• Network Protocol
  UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP,
  802.1x, UPnP, HTTP, HTTPs, QoS
• Interface Protocol
  ONVIF
• Functions Storage
  Network remote storage, micro SD card storage
• Smart Alarm
  Motion detection, SD card error, SD card full
• Intelligent Analytics
  Region intrusion detection, scene change detection and line crossing detection
• General Function
  Watermark, IP address filtering, video mask, heartbeat, illegal login lock
• PoE

• IR Distance
  30 ~ 50 m
• Ingress Protection
  IP 67
• Power Supply
  DC12V/PoE
• Power Consumption
  < 9.5W
• Operating Environment
  - 30 °C -60 C(-22°F-140°F)
  Humidity: less than 95 % (non-condensing)
• Installation
  Ceiling mounting; Wall mounting
• Third Stream
  D1/CIF/480x240(1~20fps)
• Audio Compression
  G711A / U
• H.264 Compression Standard
  Baseline Profile/Main Profile/High Profile
