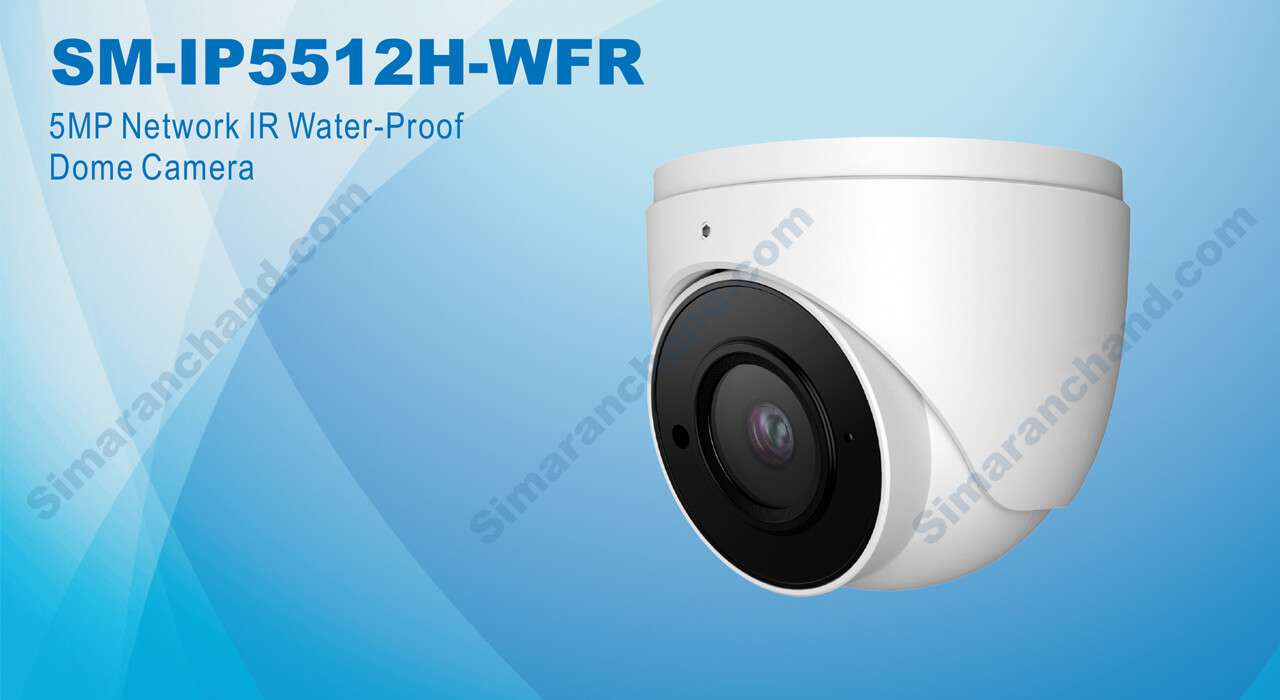

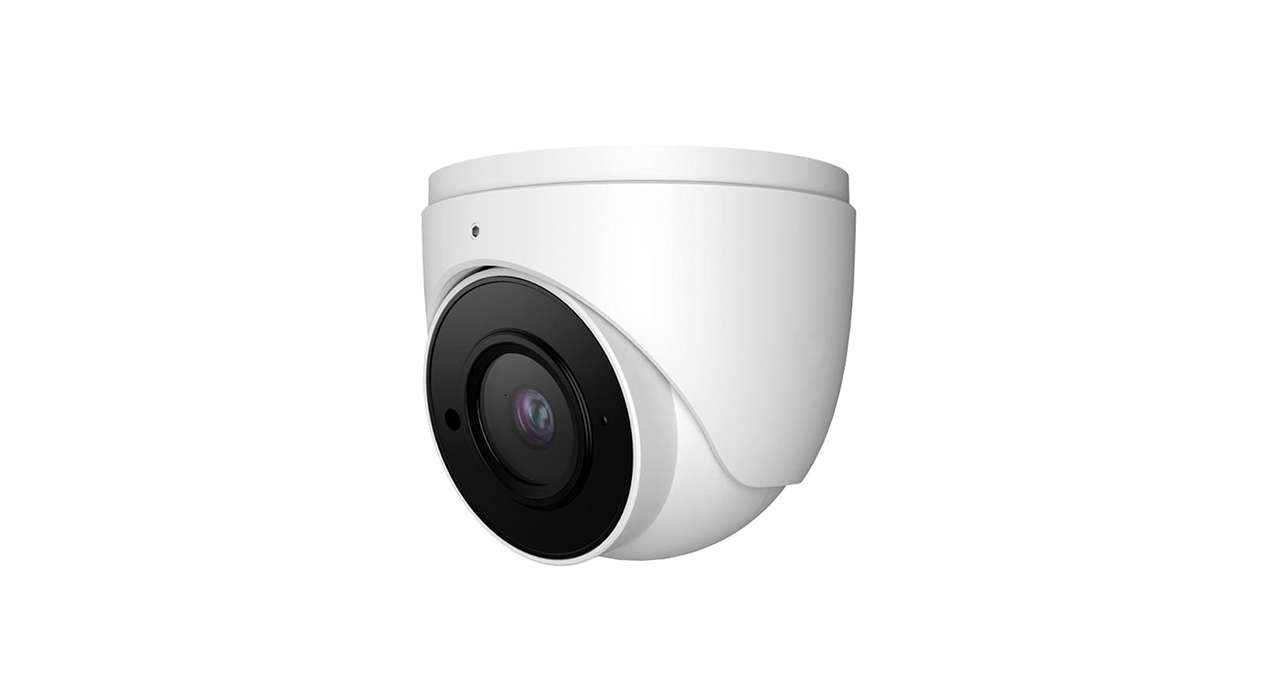

دوربین مدار بسته دام IP سیماران مدل SM-IP5512H-WFR

مشخصات فنی

• رنگ
  سفید
• وزن
  Approx. KG0.46

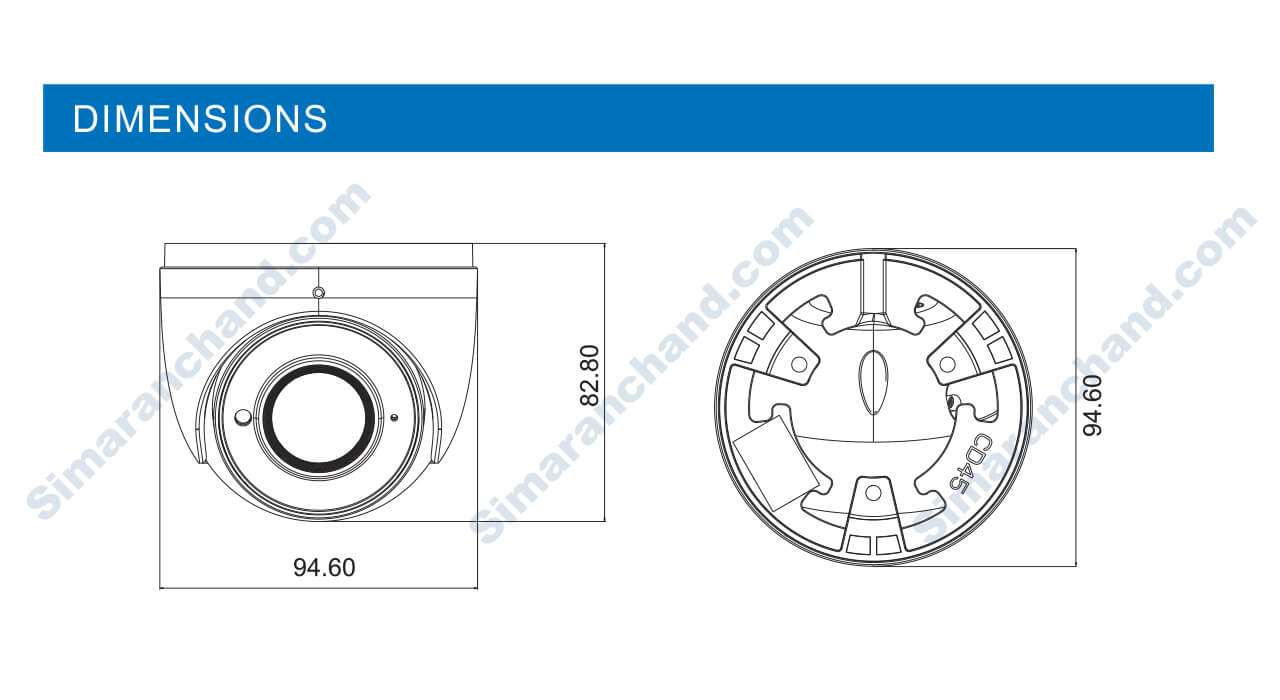

• ابعاد
  Φ 94.6 × 82.8
• کشور سازنده
  ایران
• مدت زمان گارانتی
  24 ماه
• Image sensor
  1 / 2.5 "CMOS
• Image size
  2592×1944
• Electronic Shutter
  1 / 25 s ~ 1 / 100000 s
• Iris Type
  Fixed Iris
• Min. Illumination
  0.036 lux @F2.0, AGC ON; 0 lux with IR
  0.013 lux @ F1.2, AGC ON; 0 lux with IR
• Lens
  2.8 mm @F1.85, horizontal field of view: 101°
  3.6 mm @F1.6, horizontal field of view: 79°
• Lens Mount
  M12
• Wide Dynamic Range
  120dB
• BLC

• HLC

• Defog

• Digital NR
  3D DNR
• Angle Adjustment
  Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°
• Video Compression
  H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Resolution
  5MP ( 2592 x 1944 ), 4MP ( 2560 x 1440 ), 2k(2560 x 1440)
  3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ),
  720P ( 1280 × 720 ), D1, CIF, 480 × 240
• Main Stream
  60Hz : 5MP(1~30fps)/4MP(1~30fps)/2k(1~30fps)
  3MP(1~30fps)/ 1080P(1~30fps)/ 720P(1~30fps)
  50Hz : 5MP(1~25fps)/ 4MP（1~25fps）/ 2K（1~25fps）/
  3MP（1~25fps）/ 1080P（1~25fps）/ 720P（1~25fps）
• Sub Stream
  60Hz : 720P(1~15fps)/D1 /CIF (1~30fps);
  50HZ:720P(1~15fps)/D1(1~25fps)/CIF (1~25fps)
• Bit Rate
  128 Kbps ~ 10 Mbps
• Bit Rate Type
  VBR / CBR
• Image Settings
  ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic,
  Sharpen, NR,etc. adjustable through client software or web browser
• ROI
  Each ROI to be configured separately
• Network
  RJ45
• Video Output
  CVBS output (BNC× 1)
• Audio
  MIC IN × 1; built-in MIC × 1
• Interfaces Storage
  Built-in micro SD card slot; up to 128GB
• Hardware Reset

• Remote Monitoring
  Web browsing,CMS remote control
• Online Connection
  Support simultaneous monitoring for up to 10 users;
  Support multi-stream real time transmission
• Network Protocol
  UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP,
  SNMP, 802.1x, UPnP, HTTPs, QoS
• Interface Protocol
  ONVIF, GB-T/28181-2011
• Functions Storage
  Network remote storage; micro SD card storage
• Smart Alarm
  Motion detection; SD card error; SD card full
• Intelligent Analytics
  Object removal detection, regional intrusion detection, abnormal
  video detection, line crossing detection, people intrusion, people
  counting, crowd density (optional)
• General Function
  Watermark, IP address filtering, video mask, heartbeat, password protection
• PoE

• IR Distance
  20 ~ 30 m
• Ingress Protection
  IP67
• Power Supply
  DC12V/PoE
• Power Consumption
  < 6W
• Operating Environment
  - 30 °C -60 C(-22°F-140°F)
  Humidity: less than 95 % non condensing
• Installation
  Ceiling mounting ( Wall mounting available with the junction box and bracket
• Third Stream
  60Hz : D1/CIF/480 240 (1~30fps); 50HZ: D1/CIF × × /480 240 (1~25fps)
• Audio Compression
  G711A / U
• H.264 Compression Standard
  Baseline Profile/Main Profile/High Profile
• High frame rate mode
  Main stream: 1080P/720P(1~60fps/1~50fps)
• Face Detection
