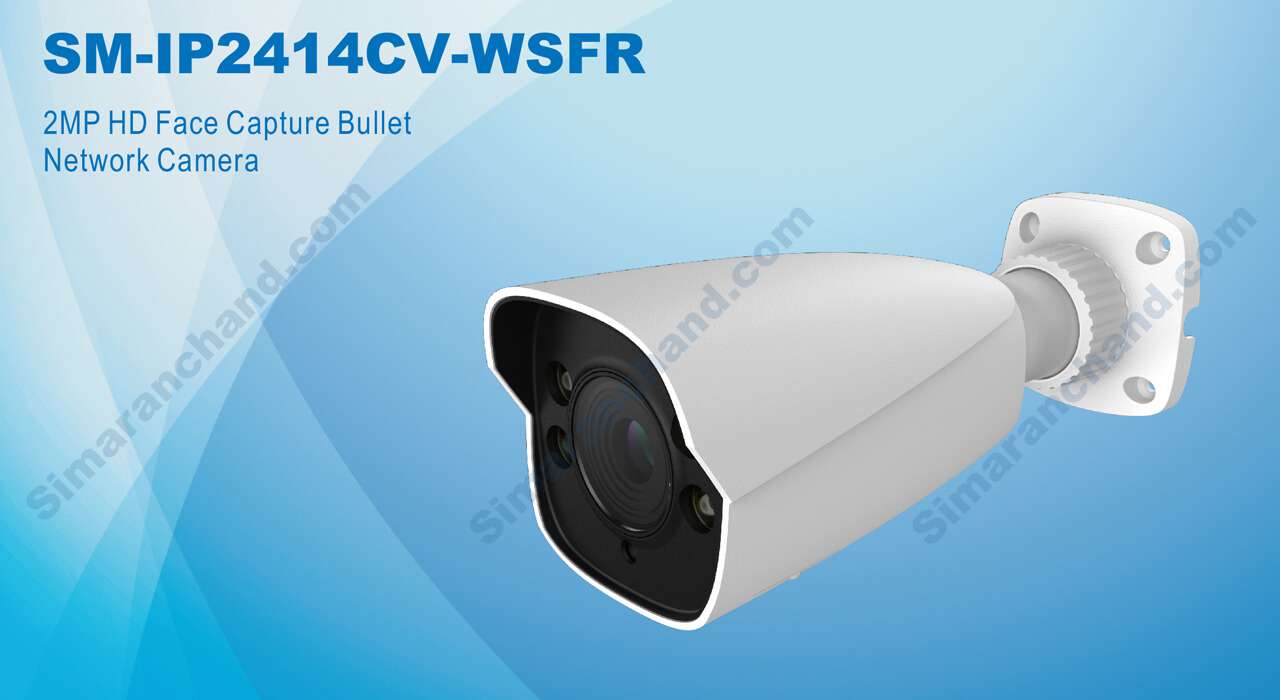

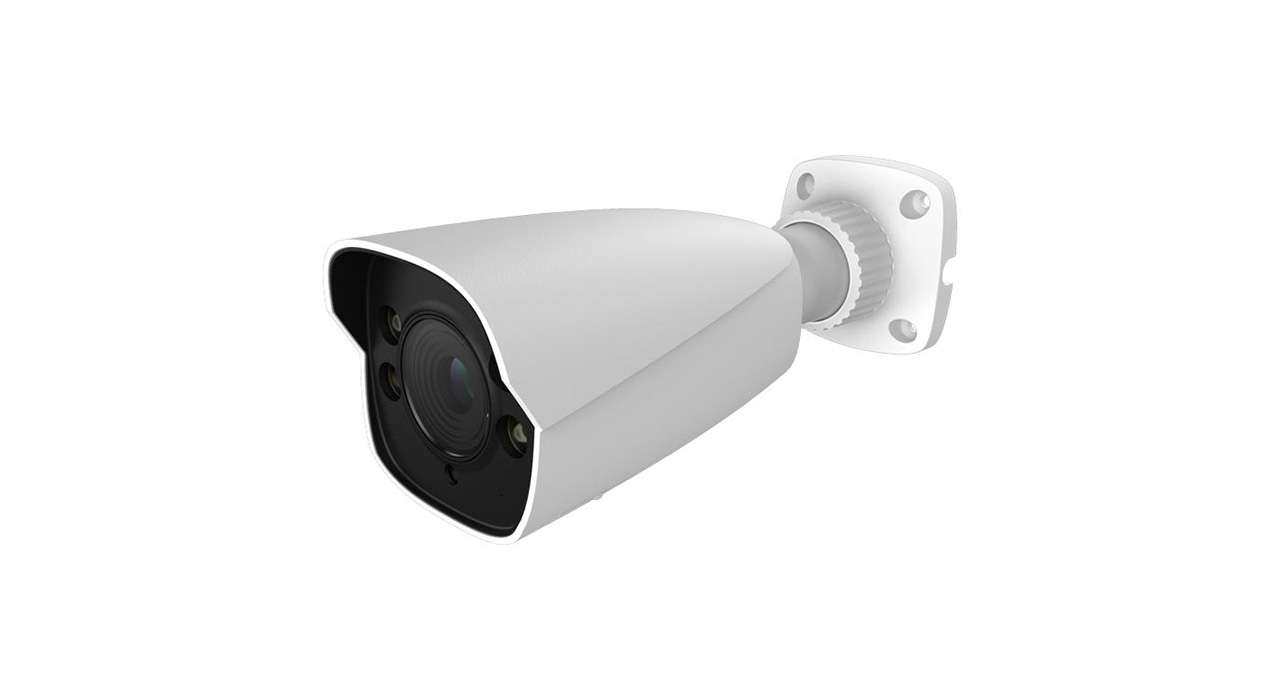

دوربین مدار بسته بولت IP سیماران مدل SM-IP2414CV-WSFR

مشخصات فنی

• رنگ
  سفید
• وزن
  Approx. 0.641KG

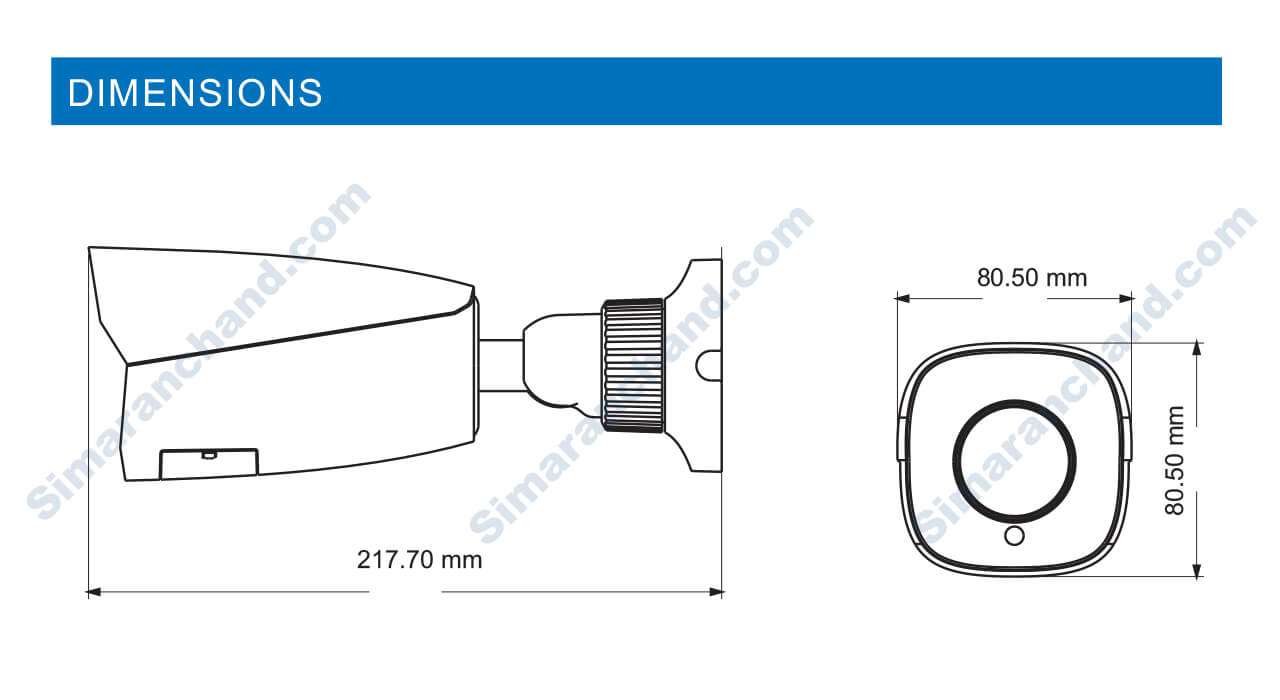

• ابعاد
  217.7 × 80.5 × 80.5
• کشور سازنده
  ایران
• مدت زمان گارانتی
  24 ماه
• Image sensor
  1 / 2.8" SONY CMOS
• Image size
  1920× 1080
• Electronic Shutter
  1 / 25 s ~ 1 / 100000 s
• Iris Type
  Fixed IRIS
• Min. Illumination
  0.0028 lux@F1.2, AGC ON; 0 lux with LED
  0.005 lux@F1.6, AGC ON; 0 lux with LED
• Lens
  8mm@F1.6, horizontal FoV:40.6 °; Vertical FoV:23.5°; Diagonal FoV:46°
  12mm @F2.0, horizontal FoV:26.6 °; Vertical FoV:15°; Diagonal FoV:30°
• Lens Mount
  M12
• Wide Dynamic Range
  120dB
• BLC

• HLC

• Defog

• Digital NR
  3D DNR
• Angle Adjustment
  Pan: 0 ~360 ; Tilt: ° ° 0°~90°; Rotation: 0°~360°
• Video Compression
  Smart H.264 / H.264+ / H.264 / MJPEGH.265 / H.265+ / H.265 / Smart
• Resolution
  1080P ( 1920 1080 )× , 720P ( 1280 × 720 ) D1 CIF 480 × 240
• Main Stream
  60Hz : 1080P/ 720P (1 ~ 30fps ); 50Hz : 1080P/ 720P (1 ~ 25fps )
• Sub Stream
  60Hz : D1/CIF (1~30fps);
  50HZ:720P/D1/CIF/480×240 (1~25fps)
• Bit Rate
  64 Kbps ~ 6 Mbps
• Bit Rate Type
  VBR / CBR
• Image Settings
  ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen,
  NR, etc. adjustable through client software or web browser
• ROI
  Each ROI to be configured separately
• Network
  RJ45
• Video Output

• Audio
  1CH audio input
• Interfaces Storage
  Built-in micro SD card slot, up to 128GB
• Remote Monitoring
  Web browsing,CMS remote control
• Online Connection
  Support simultaneous monitoring for up to 10 users;
  Support multi-stream real time transmission
• Network Protocol
  UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP,
  802.1x, UPnP, HTTP, HTTPs, QoS
• Interface Protocol
  ONVIF
• Functions Storage
  Network remote storage; micro SD card storage
• Smart Alarm
  Motion detection; SD card full; SD card error
• Intelligent Analytics
  Face detection, face capture, exception detection(scene change, video
  blur and video color cast detection)
• General Function
  Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch
• PoE
  Yes (802.3af)
• Ingress Protection
  IP67
• Power Supply
  DC12V/PoE
• Power Consumption
  < 10W
• Operating Environment
  - 30 °C -60 C(-22°F-140°F)
  Humidity: less than 95 % (non-condensing)
• Installation
  Wall mounting; ceiling mounting
• Third Stream
  60Hz : CIF 480 240 (1~30fps); 50H : CIF 480 240 (1~25fps)D1/ / × z D1/ / ×
• Audio Compression
  G711A/U
• H.264 Compression Standard
  Baseline Profile/Main Profile/High Profile
• Face Detection
  Pupil distance of a facial image over 20 pixel can be detected
• Focus
  Fixed
• Reset

• Alarm

• LED View Distance
  10m soft light
• Face Capturing
  By precise detecting, tracing, capturing, scoring and screening the
  moving faces to get the most effective face snapshots
• Panorama Capturing
  Support panorama capturing and self-defined information overlay, like
  device ID, time, etc.
• Intelligent Light Compensation
  Built-in high efficient white light LEDs, time switch available
