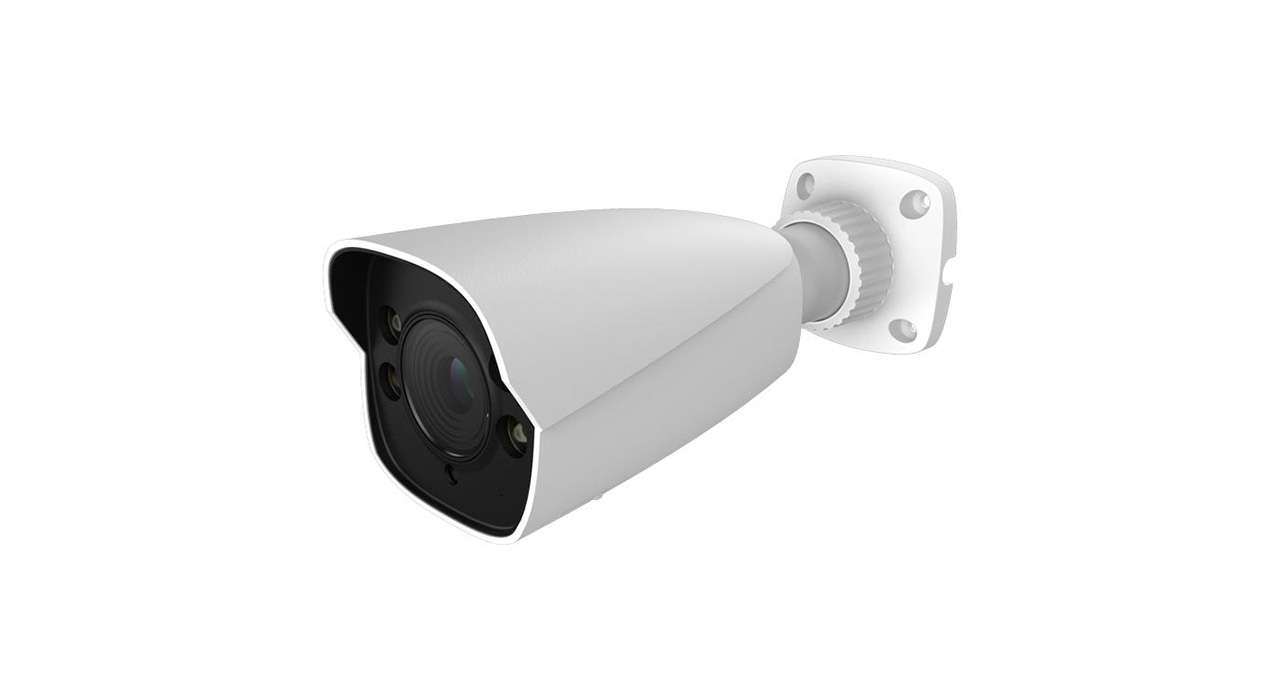

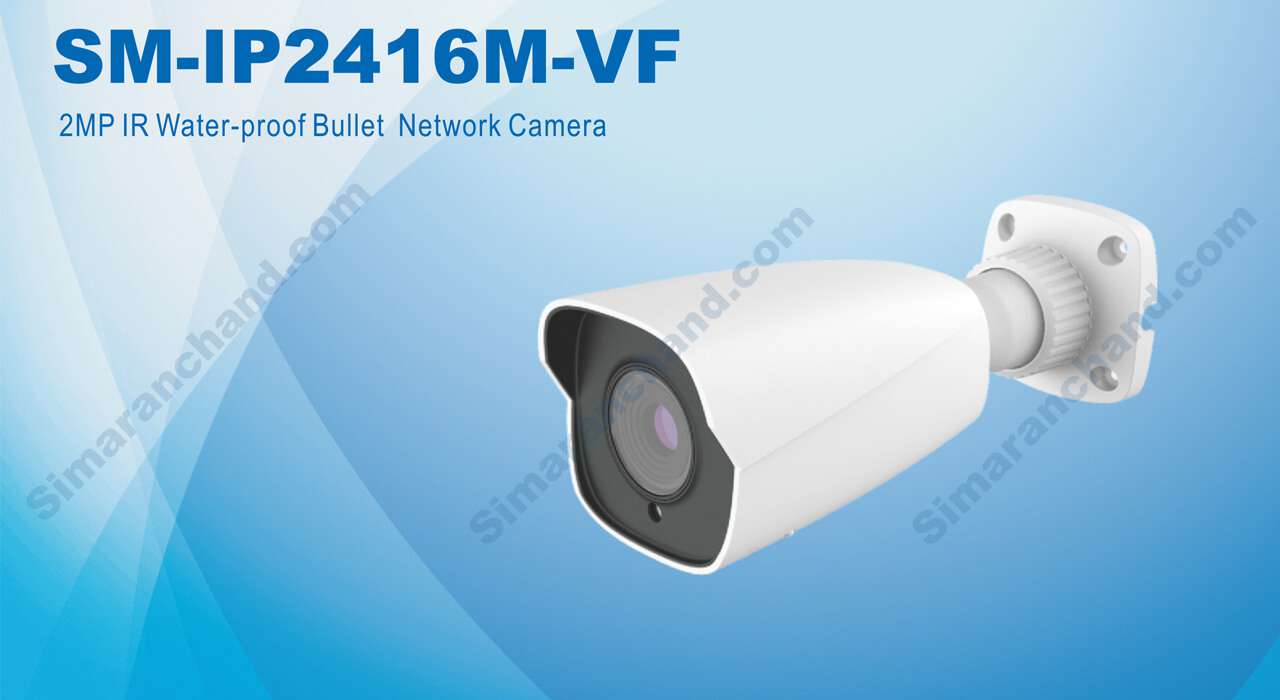

دوربین مدار بسته بولت IP سیماران مدل SM-IP2416M-VF

مشخصات فنی

• رنگ
  سفید
• وزن
  Approx. 0.65KG

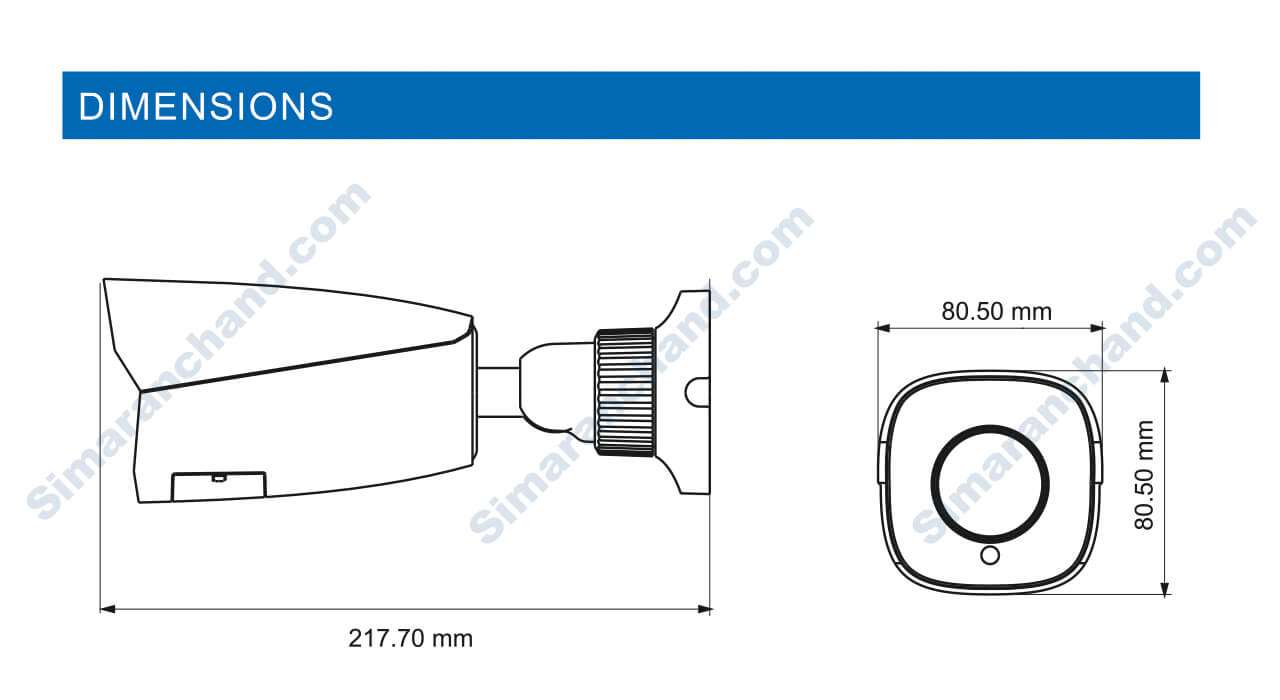

• ابعاد
  217.7 × 80.5 × 80.5
• کشور سازنده

• مدت زمان گارانتی
  24 ماه
• Image sensor
  1 / 2.9 "CMOS
• Image size
  1920 × 1080
• Electronic Shutter
  1 / 25 s ~ 1 / 100000 s
• Iris Type
  Fixed Iris
• Min. Illumination
  0.0035 lux@F1.2,AGC ON; 0 lux with IR
  0.013 lux@F2.0,AGC ON; 0 lux with IR
• Lens
  2.8 mm @F2.0, (fixed lens) , horizontal field of view: 107°
  3.6 mm @F2.0, horizontal field of view: 84.8°
  6 mm @F2.0, (fixed lens), horizontal field of view:52°
  2.8~12mm@F1.4, (motorized zoom lens) , horizontal field of view: 88°~34.8°
• Lens Mount
  M12 or Φ14 optional
• Wide Dynamic Range
  Digital WDR
• BLC

• HLC

• Digital NR
  3D DNR
• Angle Adjustment
  Pan: 0 ~360 ; Tilt: ° ° 0°~90°; Rotation: 0°~360°
• Video Compression
  H.265 / H.264 / MJPEG
• H.265 Compression Standard
  Main Profile@Leve4.1 High Tier
• Resolution
  1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
• Main Stream
  60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )
  50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps )
• Sub Stream
  60Hz : D1/CIF/480x240 (1~30fps); 50HZ: D1/CIF/480x240 (1~25fps)
• Bit Rate
  64 Kbps ~ 6 Mbps
• Bit Rate Type
  VBR / CBR
• Image Settings
  ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic,
  defog .Sharpen, NR,etc. adjustable through client software or web browser
• ROI
  Each ROI to be configured separately
• Network
  RJ45
• Audio
  1CH audio input
• Interfaces Storage
  Built-in micro SD card slot; up to 128GB
• Hardware Reset

• Remote Monitoring
  Web browsing,CMS remote control
• Online Connection
  Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
• Network Protocol
  UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DONS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS
• Interface Protocol
  ONVIF
• Functions Storage
  Network remote storage; micro SD card storage
• Smart Alarm
  Motion detection ; SD card error ;SD card full
• Intelligent Analytics
  Video blur detection, line crossing detection and region intrusion detection
• General Function
  Watermark, IP address filtering, video mask, heartbeat, illegal login lock
• PoE

• IR Distance
  30 ~ 50m
• Ingress Protection
  IP67
• Power Supply
  DC12V/PoE
• Power Consumption
  < 7.5W
• Operating Environment
  - 30 °C -60 C(-22°F-140°F)
  Humidity: less than 95 % (non-condensing)
• Installation
  Ceiling mounting; Wall mounting
• Audio Compression
  G711A / U
