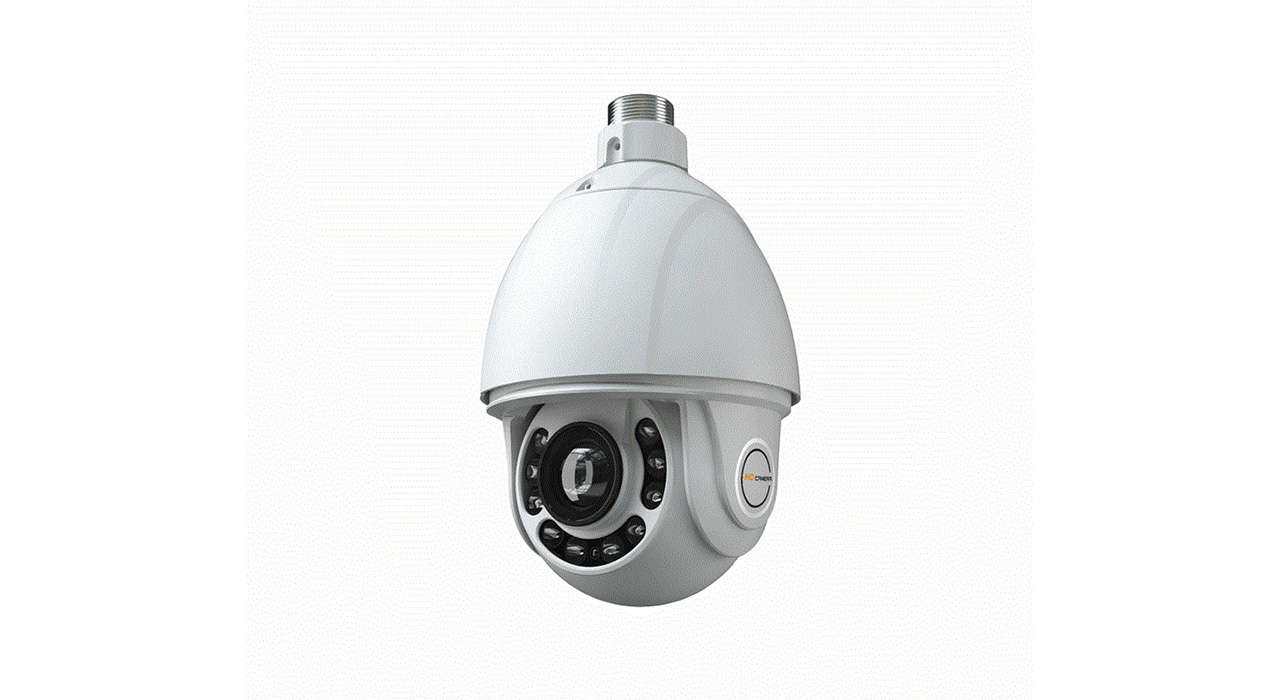

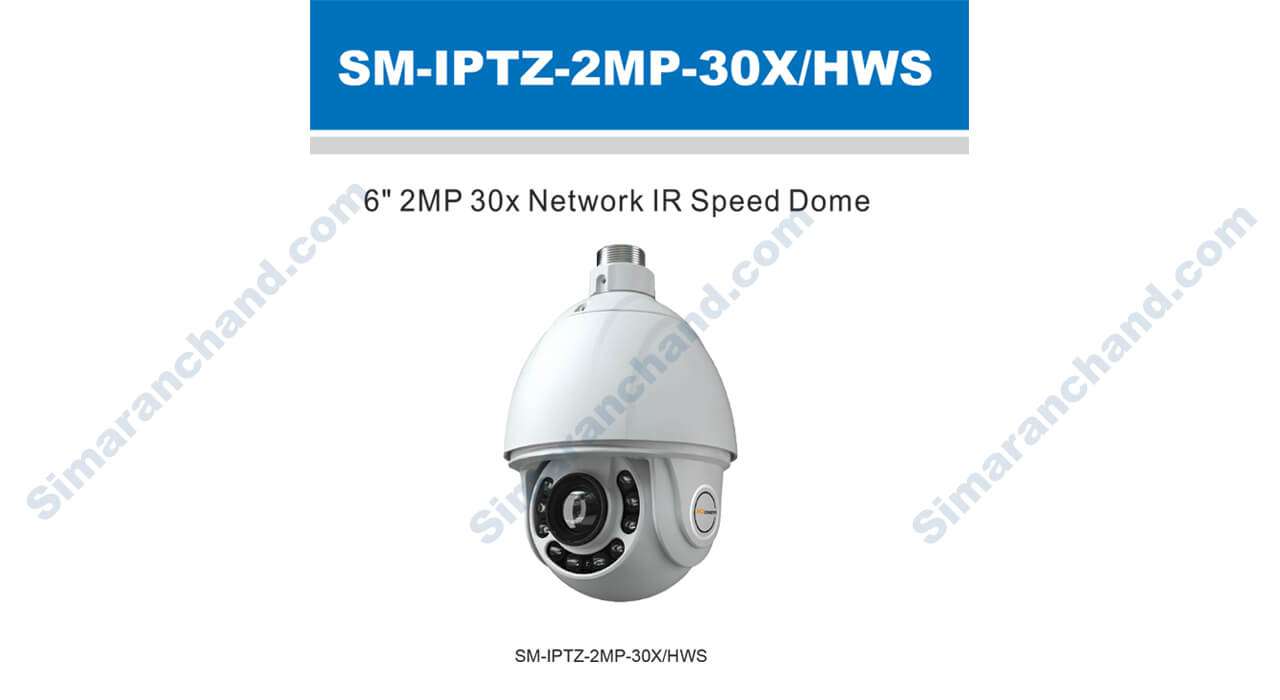

دوربین مدار بسته اسپید دام سیماران مدل SM-IPTZ-2MP-30X/HWS

مشخصات فنی

• رنگ
  سفید
• وزن
  Approx. (11.82lb)5.36KG

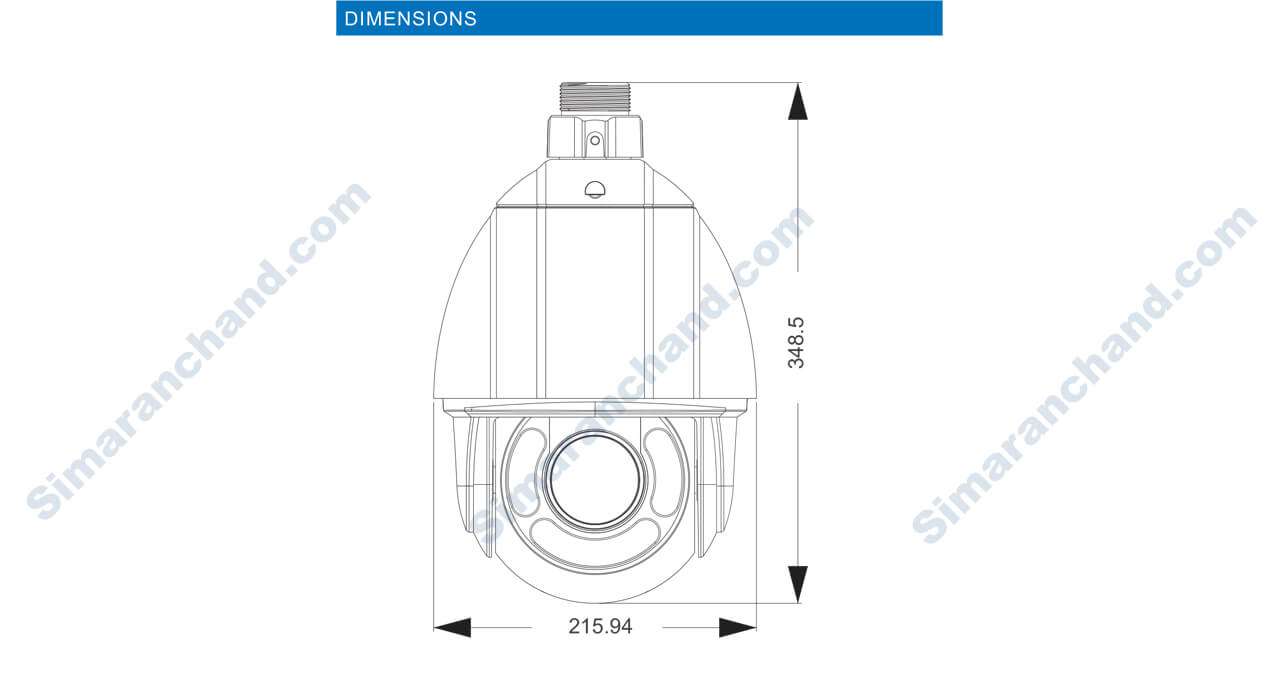

• ابعاد
  Φ × 348.5mm ( 8.5"215.9mm Φ × 13.7")
• کشور سازنده
  ایران
• مدت زمان گارانتی
  24 ماه
• Image sensor
  1 / 2.8 "progressive scan (SONY) CMOS
• Min. Illumination
  Color: 0.006 lux @F1.6, AGC ON
  B/W: 0.003lux @F1.6, AGC ON 0 lux with IR
• Video Compression
  H.265 / H.264 / MJPEG
• Main Stream
  50Hz:25fps(1920 1080, 1280 720)
  60Hz:30fps(1920×1080, 1280×720)
• Sub Stream
  50Hz:25fps(1280×720, D1, CIF)
  60Hz:30fps(1280×720, D1, CIF)
• Network
  1 RJ45 10M/100M Ethernet
• Video Output
  1CH video output (1.0V [p-p] / 75Ω, PAL or NTSC, BNC)
• Audio
  1CH audio input (applicable microphone, plug-in power type) 2 to 2.4v[pp] 1kΩ±10%; 1CH audio output (line out), impedance: 600Ω
• Network Protocol
  HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
• Interface Protocol
  ONVIF, support TVT API and third-party management platform
• Functions Storage
  Built-in micro SD card slot, up to 128GB
• IR Distance
  300m: 6 LED lights+4 VCSEL (laser)
• Ingress Protection
  IP 66 Standard, TVS6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power Supply
  AC24V3A, Max.60W(IR ON)
• Operating Environment
  -30 C 60 C(-22 F~140 F), ° ~ ° ° ° ≤ 95% RH
• Third Stream
  50Hz:25fps(D1 )
  60Hz:30fps(D1, 480×240, CIF)
• Audio Compression
  G.711A/U
• Focus
  Auto/Manual
• Alarm
  7CH alarm input; 1CH alarm output
• White Balance
  Auto/Manual//Indoor/Outdoor
• S/N ratio
  More than 50dB
• Gain
  Auto/Manual
• Shutter Time
  50Hz: 1 / 1 s ~ 1 / 25, 000 s; 60Hz: 1 / 1 s ~ 1 / 30, 000 s
• Day&Night
  IR Cut Filter
• Privacy Mask
  4 programmable privacy masks
• WDR
  True WDR, 2 frames in one
• Focal Length
  4.5-135mm, 30x optical zoom
• Zoom Speed
  Approx. 4s (optical lens, Wide-TELE)
• Field of View
  Horizontal field of view: 62 to 2.3 ( )
  Vertical field of view: 35° to 1.3° (Wide-TELE)
  Diagonal field of view: 71° to 2.6° (Wide-TELE)
• Working Distance
  Wide:1.0m~INF Tele: 1.5m~INF
• Aperture Range
  F1.6 (Wide) to F4.4 ( )TELE
• Smart IR
  Support
• Pan Range
  360 endless °
• Pan Speed
  Configurable, from 0.1°/s to 80°/s; Preset speed: 150°/s
• Tilt Range
  From 0 to 93 (auto-flip) ° °
• Tilt Speed
  Configurable, from 0.1°/s to 70°/s; Preset speed: 150°/s
• Proportional Zoom
  Support
• Preset
  360
• Cruise
  8 cruises, up to 16 presets for each cruises
• Track
  4 traces, record time over 3 minutes for each trace
• Power-off Memory
  Support
• Action Mode
  Preset/Cruise/Trace/Auto Scan/Random Scan
• 3D Postioning
  Support
• PTZ Position Display
  Support
• Scheduled Task
  Preset/Cruise/Trace/Random Scan/Boundary Scanning/Dome Reboot
• H.264 Type
  Baseline Profile/Main Profile/High Profile
• H.265 Type
  Main Profile
• Video Bit Rate
  128Kbps ~ 6Mbps
• SVC
  Support
• Basic Event
  Motion Detection, Video Tampering Detection, Exception
• Smart Event
  Object Removal Detection, Intrusion Detection, Line Crossing Detection, People Intrusion and People Counting
• Alarm Linkage
  Alarm actions, such as preset, cruise, track, SD card record, trigger recording, notify surveillance center, upload to FTP/SD card/NAS, send Email, etc.
• Smart Record
  ANR (Automatic Network Replenishment)
• Max. Resolution
  1920×1080
• Simultaneous Live View
  Up to 6 channels
• User/Host
  Up to 16 users, 3 levels: Administrator, Advanced User and Normal User
• Security Measures
  User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering
• Client
  VMS-9000 Client
• Web Browser
  IE8-11, Chrome 31.0 to 44, Firefox 30.0 to 51
• RS485
  Pelco-D / P protocol, custom protocols available
• Material
  ADC12
• Image Enhancement
  WDR/HLC/BLC/3D DNR/Defog
