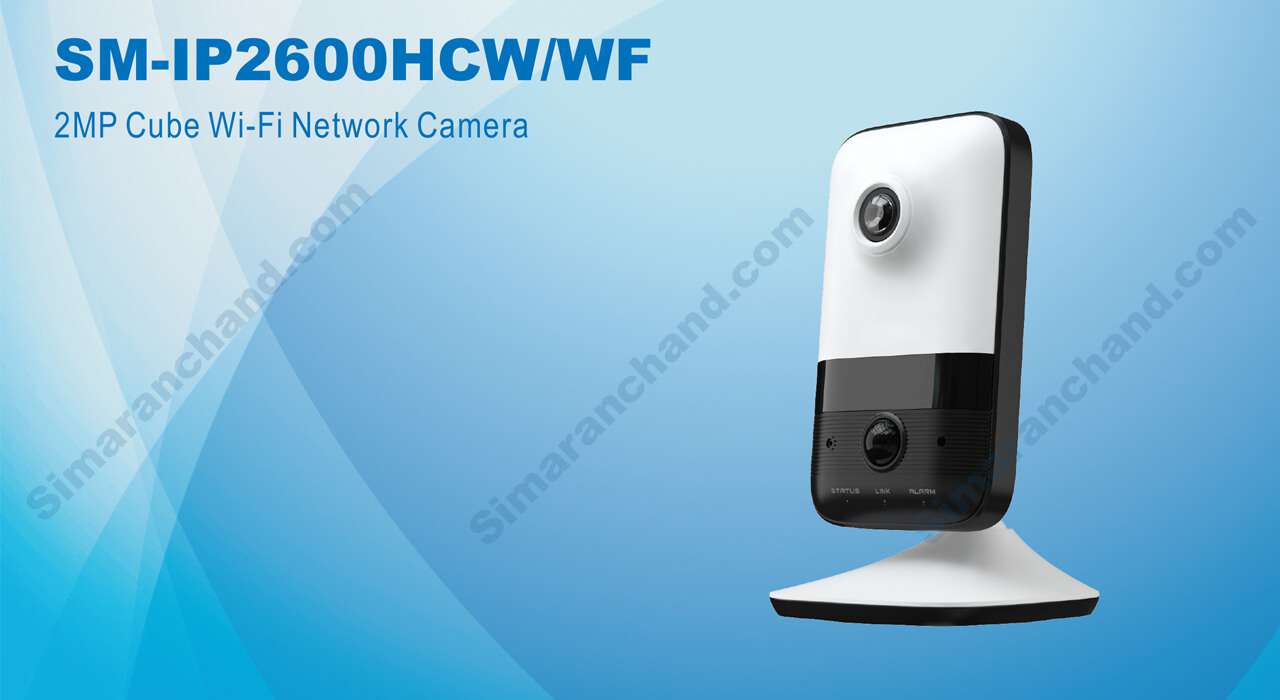

دوربین مداربسته مدل SM-IP2600HCW/WF سیماران

مشخصات فنی

• رنگ
  سفید/مشکی
• وزن
  Approx. 0.14KG

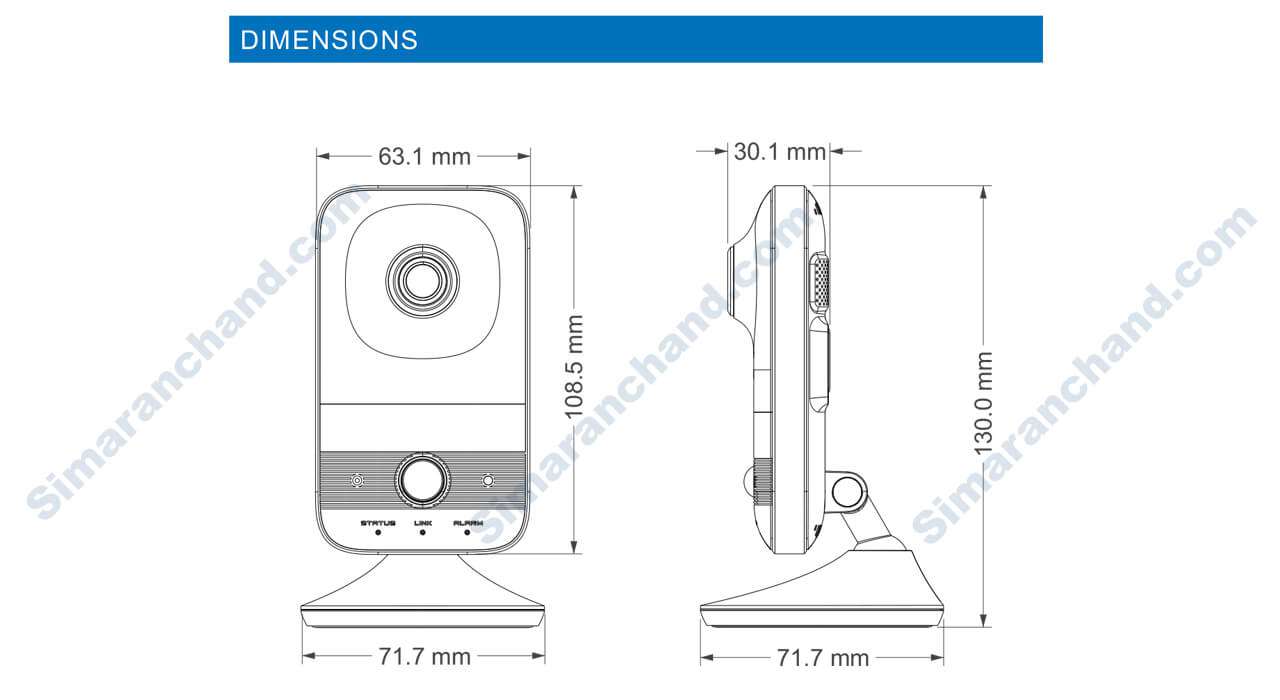

• ابعاد
  130 × × 71.771.7
• کشور سازنده
  ایران
• مدت زمان گارانتی
  24 ماه
• Image sensor
  1 / 2.7 "CMOS
• Image size
  1920 × 1080
• Electronic Shutter
  1 / 25 s ~ 1 / 100000 s
• Iris Type
  Fixed Iris
• Min. Illumination
  0.03 lux@F2.5,AGC ON; 0 lux with IR
  0.007 lux@F1.2,AGC ON; 0 lux with IR
• Lens
  2.8 mm @F1.85, horizontal field of view:116.6°
• Lens Mount
  M12
• Wide Dynamic Range
  Digital WDR
• BLC

• HLC

• Defog

• Digital NR
  3D DNR
• Angle Adjustment
  Pan: 0 ~230 ; Tilt: ° ° 0°~71°; Rotation: 0°~360°
• Video Compression
  H.264/H 265 / MJPEG
• Resolution
  1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 240 ×
• Main Stream
  60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )
  50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps )
• Sub Stream
  60Hz : D1/CIF (1~30fps); 50HZ: D1/CIF (1~25fps)
• Bit Rate
  128 Kbps ~ 6Mbps
• Bit Rate Type
  VBR / CBR
• Image Settings
  ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
• ROI
  Each ROI to be configured separately
• Network
  RJ45
• Video Output

• Audio
  Built-in MIC×1 input Built-in Speaker ×1 output
• Interfaces Storage
  Built-in micro SD card slot; up to 128GB
• Hardware Reset

• Remote Monitoring
  Web browsing, CMS remote control
• Online Connection
  Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission
• Network Protocol
  UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPs, QoS
• Interface Protocol
  ONVIF, GB-T/28181-2011
• Functions Storage
  Network remote storage; micro SD card storage
• Smart Alarm
  1CH alarm input; 1CH alarm output
• General Function
  Watermark, IP address filtering, video mask, heartbeat, password protection
• PoE

• IR Distance
  Up to 10m
• Power Supply
  DC12V/PoE
• Power Consumption
  < 4.5W
• Operating Environment
  - 10 °C ~ 45°C (-14 °F~113°F)
  Humidity: less than 95 % (non-condensing)
• Installation
  Ceiling mounting; Wall mounting; Desktop
• Third Stream
  60Hz : D1/CIF 480x240 (1~30fps); 50HZ: D1/CIF 480x240 (1~25fps) / /
• Audio Compression
  G.711A/U
• H.264 Compression Standard
  Baseline Profile/Main Profile/High Profile
• Day&Night
  IR Cut Filter
• Audio Bit Rate
  Self-adaption
• Wireless Standards
  IEEE802.11b/g/n
• Frequency Range
  2.4GHz ~ 2.4835 GHz
• Channel Bandwidth
  20MHz
• Security
  WEP, WPA-PSK/WPA2-PSK
• Transfer Rates
  11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
• Wireless Range
  50m
• Smart Alarm
  Motion detection, sensor alarm, PIR alarm, SD card full, SD card error,
  IP conflict, cable disconnection
• PIR
  Horizontal angle: 100° Range: 7m
