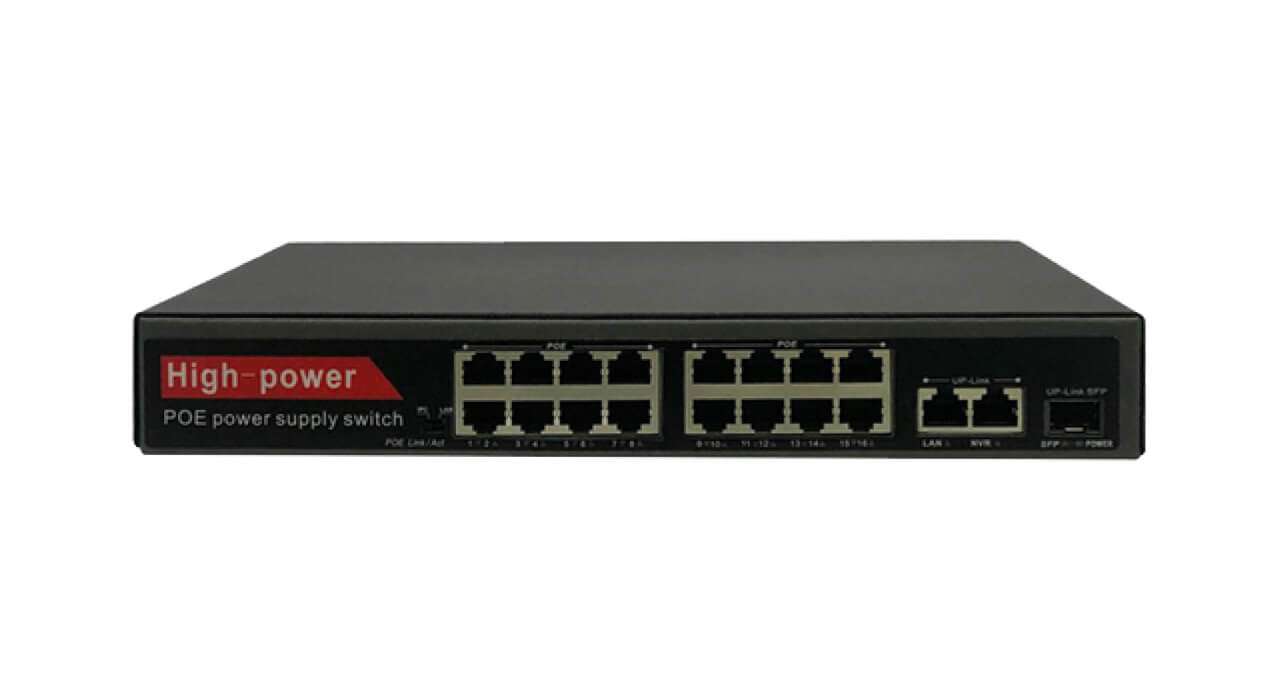

سوئیچ دوربین مداربسته IP سیماران مدل SM-LB162P-FS

SM-LB162P-FS

ناموجود


سوئیچ شبکه سیماران مدل SM-LB162P-SF:

سوئیچ شبکه سیماران مدل SM-LB162P-FS یک سوئیچ اترنت کم مصرف با کارایی بالا و استفاده بسیار راحت میباشد که مناسب شبکه های local کوچک و متوسط است. این سوییچ 16 پورت 10/100 مگابیت بر ثانیه POE و 2 پورت 1000 مگابیت بر ثانیه Gigabit و یک پورت نوری 1000 مگابیت بر ثانیه SFP مخصوص xvr و nvr دارد ( 18 پورت است که 16 پورت 10/100 POE برای ورودی دوربین و 2 پورت Gigabit uplink و یک پورت SFP ). حداکثر فاصله برای این سوئیچ شبکه ی 18 پورت 200 متر است. سوئیچ شبکه ی SM-LB162P-FS سیماران دارای دارای تکنولوژی ذخیره و ارسال است که تضمین میکند پهنای باند به طور موثر به هر پورت اختصاص داده شود، همچنین هر پورت دارای عملکرد انطباقی (adaptive function) و همچنین دارای استاندارد IEEE802.3x می باشد.

سوئیچ شبکه ی SM-LB162P-FS سیماران قابلیت پشتیبانی از:

• VLAN and tag-based VLAN

• port aggregation

• bandwidth control

• port mirroring

• priority

• static MAC address table

• port security

• IEEE 802.3az

• broadcast storm protection

• 16 * 10 / 100Mbps and 2 * 1000M adaptive RJ45, support automatic flip

(Auto-MDI / MDIX) and 1 * 1000Mbps fiber port

• EEPROM configuration

• All ports support 2KV lightning protection

• he maximum forwarding data packet length 1552/1336 bytes

• 25M clock, built-in power supply, standard metal shell design

مشخصات فنی

  • رنگ
    مشکی
  • ابعاد
    290×200×44mm
  • کشور سازنده
    ایران
  • مدت زمان گارانتی
    24 ماه
  • Chip solution
    RTL8367S+2*RTL8309N+RTL8305+2*IP808AR
  • Standards / Protocols
    IEEE 802.1s, IEEE 802.1w,IEEE 802.1Q,IEEE 802.3az,,IEEE 802.3x
  • Topological structure
    star-shaped
  • Network media
    10BASE-T: Unshielded category 3, category 4, category 5 twisted pair (maximum 100m)
    100BASE-TX/100BASE-T: Unshielded category 5, over category 5 twisted pair (maximum 100m)
  • Ethernet Port
    16*10/100/1000M RJ45 PoE ports(Auto Negotiation/Auto MDI/MDIX)
    2*10/100/1000M BASE-T ports(Auto Negotiation/Auto MDI/MDIX)
    1*1000Mbps fiber interface
  • concatenation
    All ports can be used as UP-LINK ports
  • Forwarding method
    Store and forward
  • MAC address storage
    2K
  • Exchange capacity
    9.2Gbps
  • forwarding rate
    6.844Mpps
  • Cache
    1.5Mbits
  • Jumbo frame
    9K(max)
  • Indicator light /each
    Power.System (Power:Yellow light) When the load is connected, the indicator status is steady light
  • Indicator light / per port
    Link/Activity (Link/Act:Green light) When the signal is connected, the status of the indicator light is blinking
  • power supply
    AC:100-240V 50/60Hz Built-inDC:52V,150W * 2
  • Power supply pin
    1/2(+),3/6(-)(POE port only)
  • POE Port output power
    Single port output maximum 30W
  • Speed limit function
    Support POE speed limit 10M / 100M (the machine needs to be
    powered off when the switch is toggled, and the POE transmission
    distance can reach 250 meters when the speed limit is 10M)
  • Static power
    MAX:6.9W (220V/50Hz)
  • Use environment
    Working temperature: -10 ℃ ~ 70 ℃ (32 ℉ ~ 127 ℉)
    Storage temperature: -40 ℃ ~ 85 ℃ (-97 ℉ ~ 142 ℉)
    Working humidity: 10% ~ 90% non-condensing
    Storage humidity: 5% ~ 95% non-condensing
  • Shell material
    metal
  • operating system
    Support Windows / MAC OS / Netware / Linux operating system
  • Customized service
    OEM/ODM
