Features
6MP H.265 full real time coding
Max resolution: 2160 2160
ICR auto switch, true day / night
20~30 m IR night view distance
3D DNR, digital WDR
Support HLC and BLC
ROI coding
Support scalable video coding technology
Support local CVBS video output and two-way audio
Support hardware reset
Support PoE power supply
Support smart phone, iPad, remote monitoring
P2P function optional
IP67 ingress protection
Support three streams
مشخصات فنی
-
رنگسفید/مشکی
-
وزن432g
-

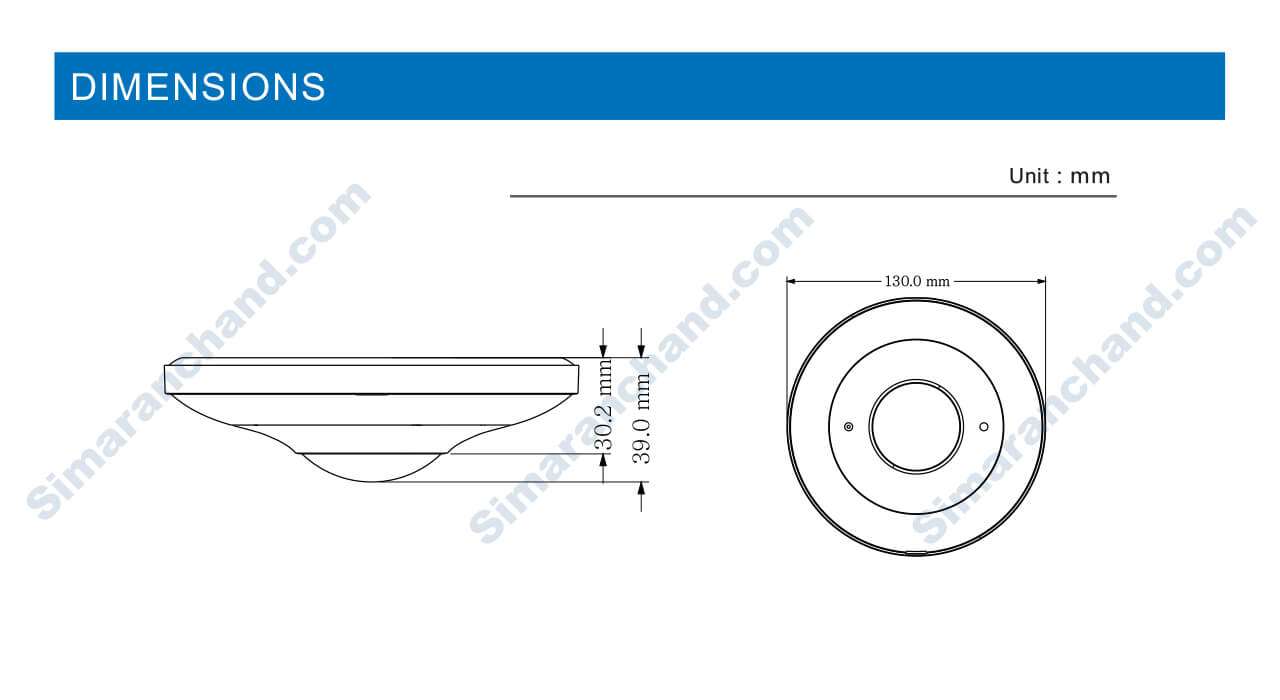

ابعادΦ 39 × 130
-
کشور سازندهایران
-
مدت زمان گارانتی24 ماه
-
Image sensor1 / 2.9 "6MP progressive scan CMOS
-
Image size2160×2160 panoramicmax image size 2160 * 2160
-
Electronic Shutter1 / 25 s ~ 1 / 100000 s
-
Lens1.07mm 1.07mm @F2.5 horizontal field of view : 180° (wall mounting) 180 360° (ceiling mounting))
-
BLC
-
Digital NR2D / 3D
-
Video CompressionH.265 / H.264 / MJPEG
-
Main Stream① Fisheye+panorama+3 PTZ50Hz: 25fps@(2160 × 2160/1920×1920/1440×1440),25fps@(1920 × 1080), 25fps@(960× 540)*360Hz: 30fps@(2160 × 2160/1920×1920/1440×1440),30fps@(1920 × 1080), 30fps@(960× 540)*3② Fisheye+ 4 PTZ50Hz: 25fps@(2160 × 2160/1920×1920/1440×1440),25fps@(960× 540)*460Hz: 30fps@(2160 × 2160/1920×1920/1440×1440),30fps@(960× 540)*4
-
Image SettingsROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic,Sharpen, NR,etc. adjustable through client software or web browser
-
NetworkRJ45
-
Video OutputCVBS video output ( BNC× 1 )
-
AudioMIC IN × 1, MIC OUT × 1
-
Interfaces StorageSupport TF card, up to 128GB
-
Remote MonitoringWeb browsing,CMS remote control
-
Online ConnectionSupport simultaneous monitoring for up to 11 users; Support multi-stream real time transmission
-
Network ProtocolTCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
-
Interface ProtocolONVIF, GB-T/28181-2011
-
Functions StorageTF card local storage, network remote storage
-
Smart AlarmMotion alarm, sensor alarm
-
PoE
-
IR Distance20~30 m
-
Ingress ProtectionIP67
-
Power SupplyDC 12V / PoE
-
Power Consumption<12W
-
Operating Environment- 20 °C ~ 50 ,10 % 90 % relative humidity°C ~
-
InstallationWall mounting, ceiling mounting
-
Audio CompressionG.711A /G.711Mu
-
Alarm1 CH alarm input; 1 CH alarm output
-
Day&NightICR
-
WDRDigtal WDR
-
Video Bit Rate64 Kbps ~ 16MKbps
-
RS485
-
Audio Bit Rate8Kbps ~ 48 Kbps
-
Effective Pixels3096(H)×2202(V)
-
Slow Shutter
-
Encoding TypeVBR (five levels adjustable)/CBR
-
Smart EncodingSupport low bitrate, low delay; support ROI coding &SVC technology;support self-adapative transmission bitrate as the network environment
